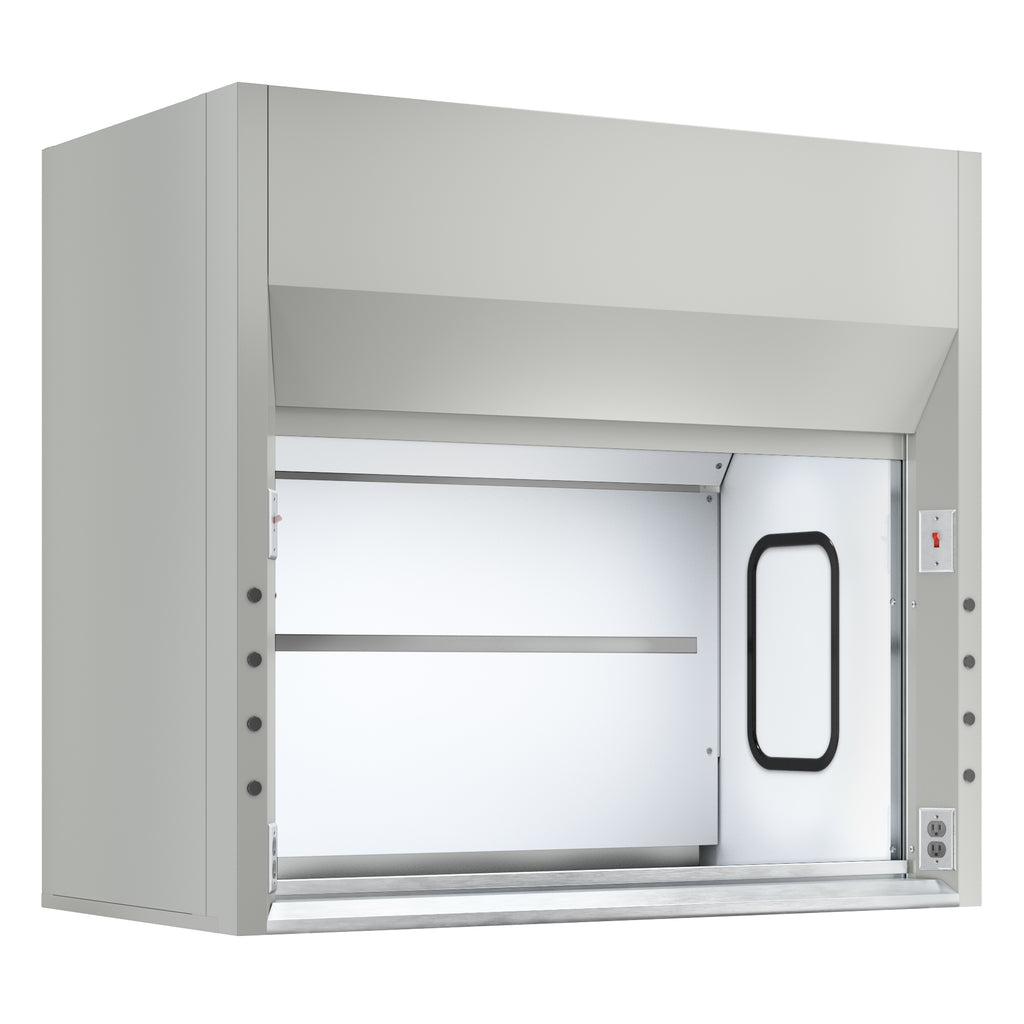

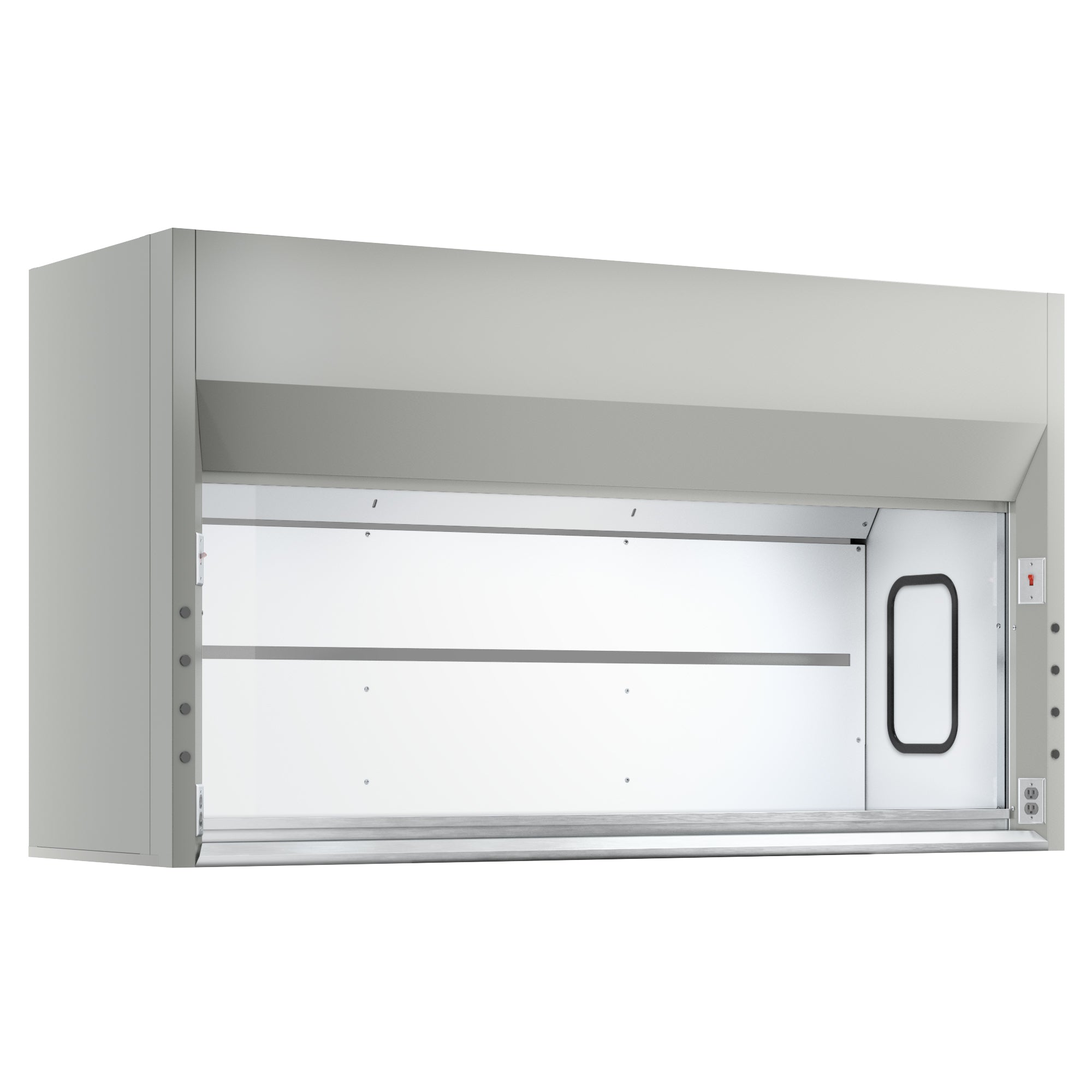

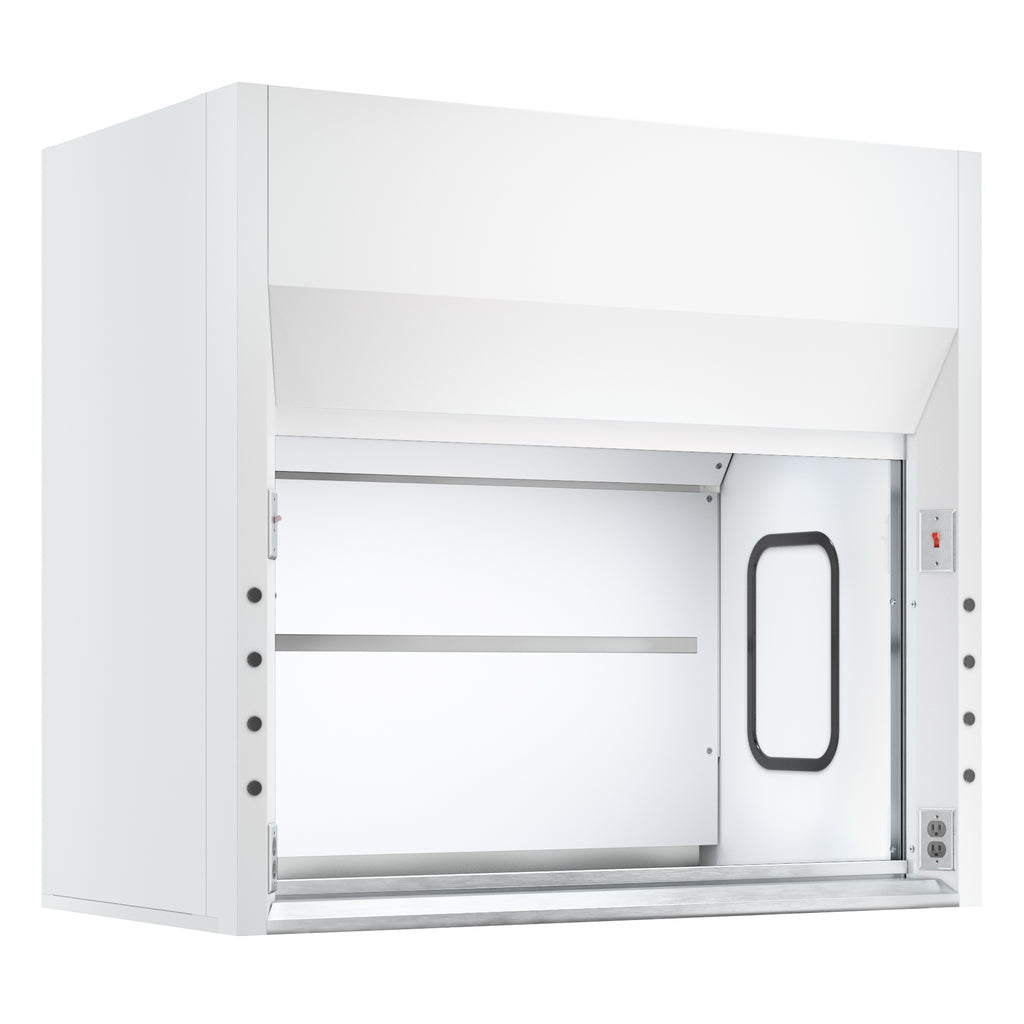

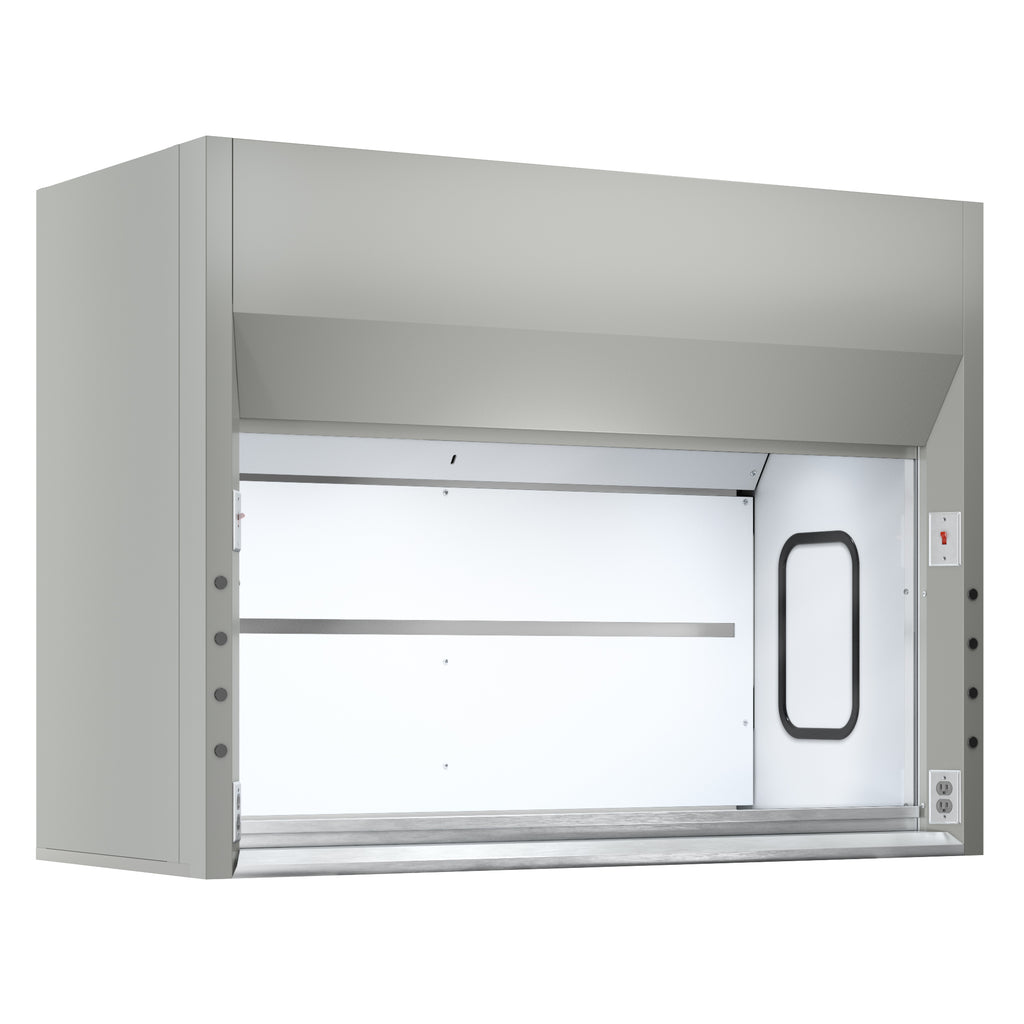

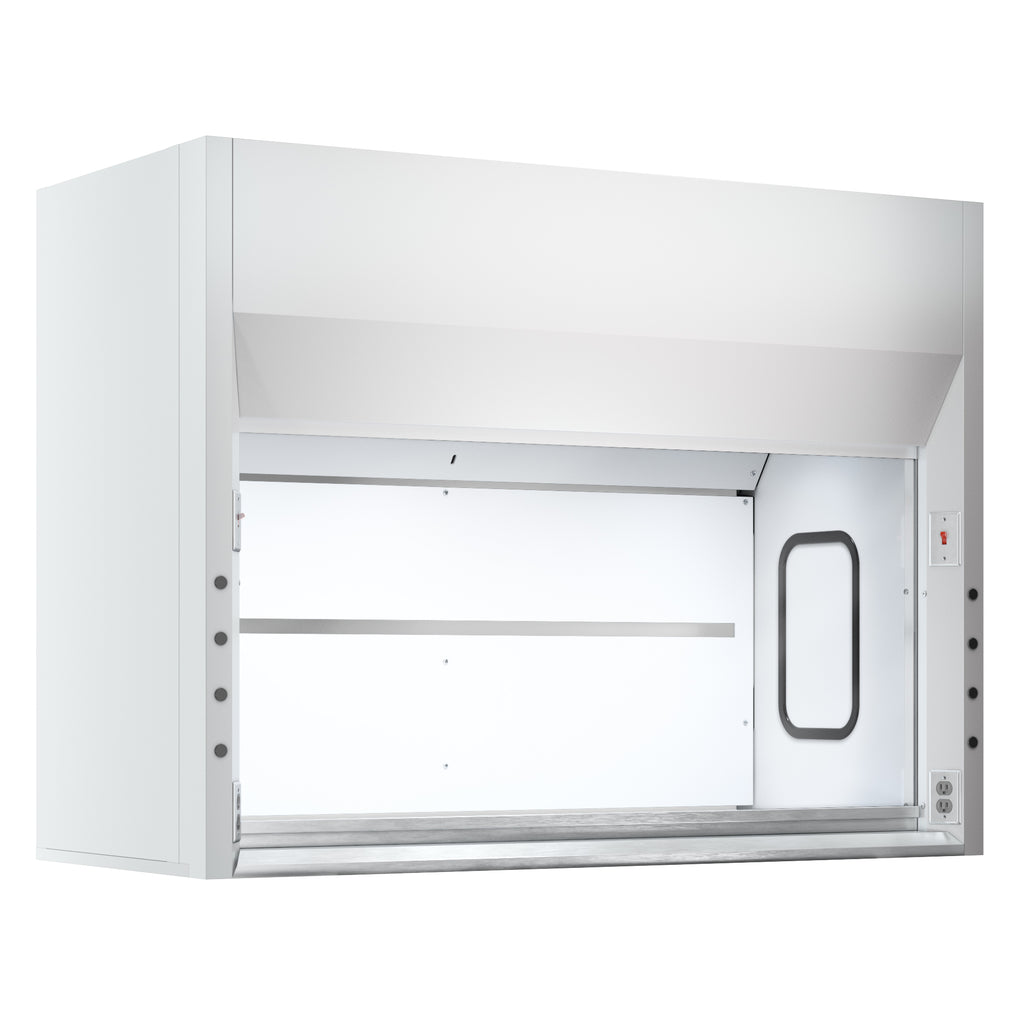

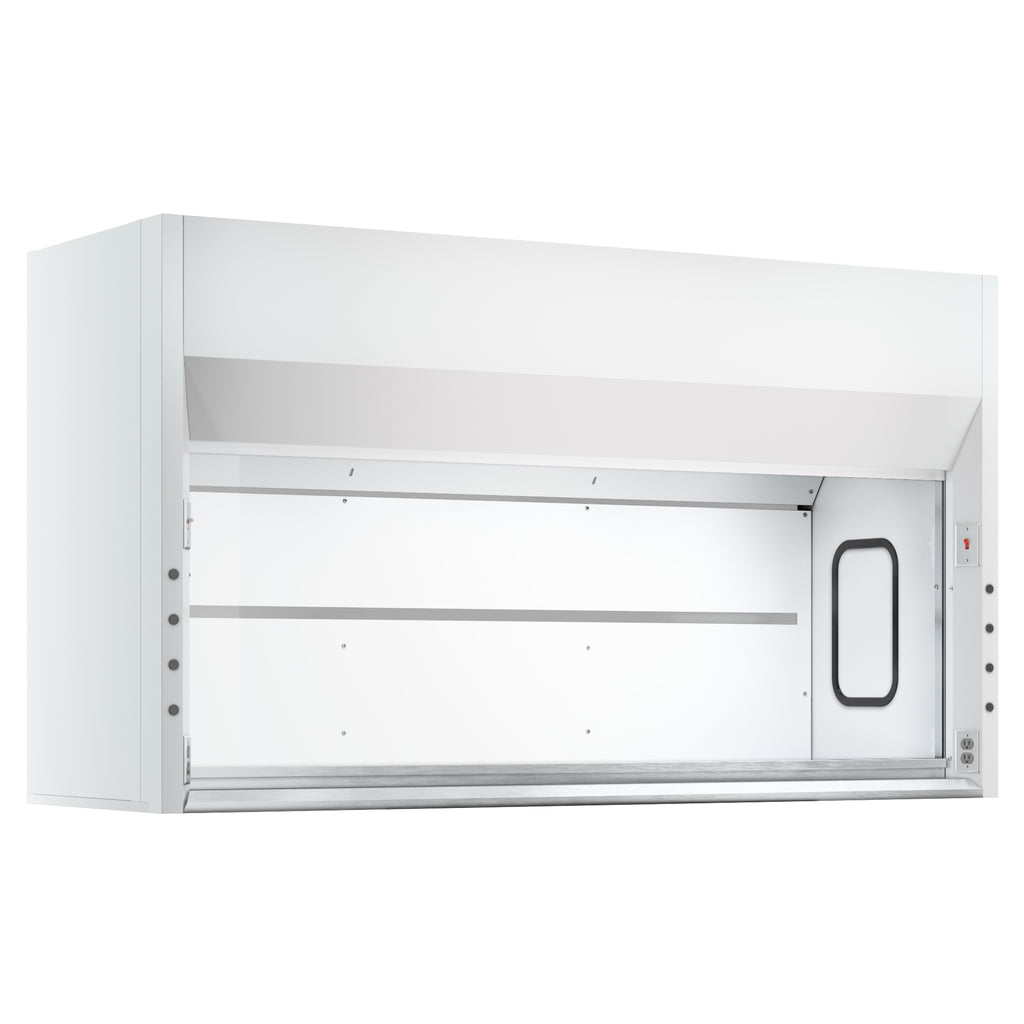

AirGuard Pro Benchtop Series Base Fume Hood

LABP48PV-KIT1

AirGuard Pro Benchtop Series Base Fume Hood

Customizable benchtop chemical fume hood designed for performance, flexibility, and smoother airflow. The AirGuard Pro uses a 16-gauge galvanized steel-pan superstructure, angled front-post design, removable side panels, bypass technology, full-bias sash perimeter, and multi-slotted baffle system. Effective performance down to 60 ft/min face velocity, useful for air-starved rooms and energy-conscious labs. This kit comes with 2x GFI and on these basic options: no plumbing, cold water, cold water and gas.

Width 48" 60" 72"

Fixtures cold water cold water & gas no plumbing

From $5,939.00

Ships in 4–6 weeks

Download iQ Labs Catalog

For dealer and bulk order inquiries,

Click Here

IS THIS THE RIGHT FIT?

Need help configuring your AirGuard Pro Benchtop Series Base Fume Hood? Our experts can guide you through options.

Best for

General-use chemical fume hood applications where airflow efficiency, energy conservation, and flexible benchtop configuration are priorities.

Not ideal for

Not the first choice for large roll-in equipment, dual-sided classroom demonstrations, perchloric acid, or low-level radioactive material. Use CleanAir, LabConnect, Perchloric, or Radioisotope as applicable.

Basic Airflow Diagram - iQ Labs Fume Hood PDF - Other

Cut Sheet - iQ Labs AirGuard Pro Series Fume Hood PDF - Cut Sheet

Cut Sheet - iQ Labs Product Offering Overview PDF - Cut Sheet

Specifications

Accessories Required	Qualified mechanical/electrical installation Building exhaust/ductwork sized to final hood and CFM Blower/exhaust coordination Work surface/base support as applicable Plumbing/electrical services if selected
Sash Configuration	Vertical rising (standard) \| Horizontal \| Combination
Liner Options	Polyresin liner
Lighting Options	LED standard / Explosion-proof light option
Electrical Options	GFI receptacles / Duplex receptacles / Light switch / Blower switch
Plumbing Pre Piping Options	Copper pre-pipe down / Copper pre-pipe up / Flex hose
Base Cabinet Options	Acid storage base / Flammable storage base / Hood base / Sink base
Controller Options	AFA 500 Airflow Monitor / AFA 1000 Airflow Monitor / AFA 4000/2 VAV Controller
Additional Options	ADA front-post configuration / Ceiling enclosure / Sash stops / Corrosion-resistant hardware / Countertops / Base cabinets / Blower
Blower Exhaust Note	Blower/exhaust system must be selected to match hood, ductwork, exhaust type, and application. Catalog lists blowers as an option; coordinate final CFM/static pressure with engineering.
Superstructure	16-gauge galvanized steel-pan superstructure with angled front posts, removable side panels, flush-wall design, and recessed counterweight.
Safety Warnings	Confirm chemical application before specifying. Do not use standard hoods for perchloric acid or radioactive materials; use special-purpose hoods designed for those materials.

COMPLIANCE & SAFETY

What it meets

ASHRAE 110 containment-testing references, SEFA fume hood guidance, UL-related electrical review where applicable, and ANSI/AIHA Z9.5 and NFPA 45 planning context.

Why it matters

Helps specifiers and safety reviewers evaluate containment, airflow performance, electrical components, and documentation for chemical handling environments.

Where it applies

Recommended for laboratories where chemical fume containment and ventilation review are required. Final applicability depends on hood series, configuration, building systems, and local review.

WHAT ELSE YOU MAY NEED

Need help configuring your fume hood? Our experts can guide you through options.

Start a Project

Typically Required

Qualified mechanical/electrical installation
Building exhaust/ductwork sized to final hood and CFM
Blower/exhaust coordination
Work surface/base support as applicable
Plumbing/electrical services if selected

Common Add-ons

Base cabinets
Countertops
Blower
Ceiling enclosure
Air monitor/alarm
Sash stops
Remote-controlled plumbing fixtures
Electrical receptacles/switches
Explosion-proof lighting where required

WHAT HAPPENS NEXT

1

Confirmation email

2

We review and may ask clarifying questions

3

You receive pricing + lead time + next steps

Is this quote-only?

Yes. Fume hoods should be quoted by configuration because width, liner, sash, services, blower, and base/countertop selections affect the final product.

Are blowers included?

Blowers are listed as optional equipment and should be sized to the hood and ductwork.

Can dimensions be customized?

Standard sizes are available on the cut sheets; custom sizes are available where noted and must be validated by iQ Labs.
